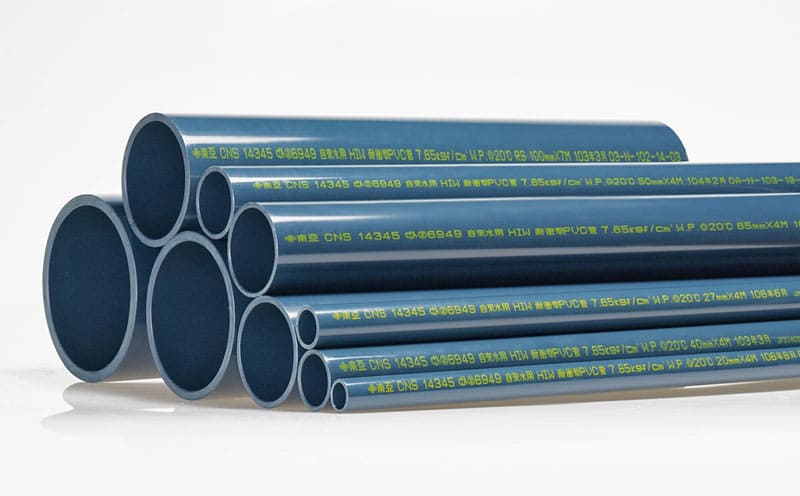

Nan Ya HI Pipe

HI pipe, which passes the earthquake resistance test (level 8) implemented by National University, is applicable to various piping projects because of its excellent hydraulic pressure resistance, external pressure resistance, and high impact resistance.

Not only is HI PVC-U pipe highly recommended for air conditioning, water supply, ice water, and electrical conduit in earthquake-stricken areas in Taiwan, HI pipe is also suitable for various piping projects such as chilled water air conditioning and tap water in mountainous areas.

With high impact resistance, Nan Ya HI Pipe (Impact-Resistant Type; High Impact Resistance Pipe; High Impact PVC Pipe), which complies with CNS 14345 standard, contains HIW Pipe, HIP Pipe, HI Impact Pipe, etc, was produced by one of the largest suppliers and the most productive manufacturers in the plastic pipes industry (PVC pipes market).
HIW Pipe, a kind of Nan Ya HI Pipe (Impact-Resistant Type; High Impact Resistance Pipe; High Impact PVC Pipe), are massively produced by Nan Ya Plastic Pipe Factory (PVC Pipe Plant) from one of the largest suppliers and the most productive manufacturers in the plastic pipes industry (PVC pipes market).
Nan Ya HI Pipe (Impact-Resistant Type; High Impact Resistance Pipe; High Impact PVC Pipe), produced by Nan Ya Plastic Pipe Factory (PVC Pipe Plant) from one of the largest suppliers and the most productive manufacturers in the plastic pipes industry (PVC pipes market), has excellen water pressure resistance, external pressure resistance, good flexibility, and high quality.

    Characteristics

  • Under experiment, HI pipe features superb flexibility and earthquake resistance (level 8).
  • With acid, alkali, and corrosion resistance, HI pipe is applicable to chemical industry piping.
  • With smooth inner wall and low fluid resistance, HI pipe isn’t so easy to be adhered with scale because of its lower roughness coefficient (0.009) than that of another pipe. Furthermore, the flow rate of a HI pipe is higher than that of a metal pipe.
  • With excellent hydraulic pressure resistance, external pressure resistance, and high impact resistance, HI pipe is applicable to various piping projects.
  • HI pipe doesn't affect water quality.

    Applications

    • 1. Water supply pipe, drainage pipe, and electrical conduit are applicable to earthquake-stricken areas.
    • 2. Tap water pipe, drainage pipe and electrical conduit are applicable to roads with large traffic flow.
    • 3. Air conditioning pipe and ice water pipe are applicable to the piping project of chilled water air conditioning.
Videos
Specification Table
Nominal Diameter Mean Outside Diameter Approximate Inner Diameter Minimum Thickness Length Effective Length List Price
HIW,HIB40 1 1/2" 48mm 40mm 3.7mm 7.15m 7m 1,060.7
HIW,HIB50 2" 60mm 51mm 4.1mm 1,507.3
HIW,HIB65 2 1/2" 76mm 67mm 4.1mm 1,945.4
HIW,HIB80 3" 89mm 77mm 5.5mm 3,000.6
HIW,HIB100 4" 114mm 100mm 6.6mm 7.17m 7m 4,671.3
HIW125 5" 140mm 125mm 7.0mm 7.2m 6,573.4
HIW,HIB150 6" 165mm 146mm 9.0mm 7.22m 9,238.1
HIW,HIB200 8" 216mm 194mm 10.8mm 7.25m 14,288.4
HIW,HIB250 10" 267mm 239mm 13.3mm 7.3m 22,367.4
HIW,HIB300 12" 318mm 285mm 15.9mm 7.5m 7m 32,002.0
HIW,HIB350 14" 370mm 332mm 18.0mm 7.55m 43,295.2
HIW,HIB400 16" 420mm 376mm 20.5mm 7.6m 56,014.5
Download Flexible looper Table
Nominal Diameter Mean Outside Diameter Approximate Inner Diameter Minimum Thickness Length Effective Length List Price
HIW,HIB40 1 1/2" 48mm 40mm 3.7mm 7.22m 7m 1,056.1
HIW,HIB50 2" 60mm 51mm 4.1mm 7.225m 1,502.2
HIW,HIB65 2 1/2" 76mm 67mm 4.1mm 1,925.3
HIW,HIB80 3" 89mm 77mm 5.5mm 2,943.7
HIW,HIB100 4" 114mm 100mm 6.6mm 7.24m 4,567.0
HIW125 5" 140mm 125mm 7.0mm 7.25m 7m 6,440.2
HIW,HIB150 6" 165mm 146mm 9.0mm 7.255m 8,996.4
HIW,HIB200 8" 216mm 194mm 10.8mm 7.275m 14,223.6
HIW,HIB250 10" 267mm 239mm 13.3mm 7.295m 20,891.5
HIW,HIB300 12" 318mm 285mm 15.9mm 7.315m 31,119.6
HIW,HIB350 14" 370mm 332mm 18.0mm 7.34m 7m 41,271.0
HIW,HIB400 16" 420mm 376mm 20.5mm 7.36m 53,540.5
Download Long looper Table
Nominal Diameter Mean Outside Diameter Approximate Inner Diameter Minimum Thickness Length Effective Length List Price
HIW,HIB40 1 1/2" 48mm 40mm 3.7mm 4.11m 4m 601.1
HIW,HIB50 2" 60mm 51mm 4.1mm 4.13m 858.6
HIW,HIB65 2 1/2" 76mm 67mm 4.1mm 4.14m 1,103.2
HIW,HIB80 3" 89mm 77mm 5.5mm 4.15m 1,694.2
HIW,HIB100 4" 114mm 100mm 6.6/m 5.165m 5m 3,260.4
HIW125 5" 140mm 125mm 7.0mm 5.18m 4,601.4
HIW,HIB150 6" 165mm 146mm 9.0mm 6.205m 6m 7,694.4
HIW,HIB200 8" 216mm 194mm 10.8mm 6.24m 11,887.9
HIW,HIB250 10" 267mm 239mm 13.3mm 6.285M 18,376.3
HIW,HIB300 12" 318mm 285mm 15.9mm 6.325m 26,287.4
HIW,HIB350 14" 370mm 332mm 18.0mm 6.36 35,760.7
HIW,HIB400 16" 420mm 376mm 20.5mm 6.385m 6m 46,448.5
HIW,HIB450 18" 470mm 422mm 22.9mm 6.42m 58,448.4
HIW,HIB500 20" 520mm 467mm 25.3mm 71,950.0
HIW,HIB600 24" 630mm 566mm 30.7mm 6.55m 106,290.4
Download General looper Table
Nominal Diameter Mean Outside Diameter Approximate Inner Diameter Minimum Thickness Length Effective Length List Price
HIW,HIB13 3/8" 18mm 13mm 2.2mm 4m 30.6 122.4
HIW,HIB16 1/2" 22mm 16mm 2.7mm 45.2 180.7
HIW,HIB20 3/4" 26mm 20mm 2.7mm 54.5 218.2
HIW25 1" 32mm 25mm 3.2mm 79.0 316.1
HIW27 1" 34mm 27mm 3.2mm 84.4 337.7
HIW30 1 1/4" 38mm 31mm 3.2mm 4m 95.6 382.3
HIW35 1 1/4" 42mm 35mm 3.2mm 106.6 426.2
HIW,HIB40 1 1/2" 48mm 40mm 3.7mm 139.3 557.3
HIW,HIB50 2" 60mm 51mm 4.1mm 198.0 792.0
HIW,HIB65 2 1/2" 76mm 67mm 4.1mm 253.8 1,015.2
HIW,HIB80 3" 89mm 77mm 5.5mm 4m 388.8 1,555.2
HIW,HIB100 4" 114mm 100mm 6.6mm 5m 601.2 3,006.0
HIW125 5" 140mm 125mm 7.0mm 803.5 4,017.6
HIW,HIB150 6" 165mm 146mm 9.0mm 6m 1,181.0 7,085.9
HIW,HIB200 8" 216mm 194mm 10.8mm 1,900.6 11,403.7
HIW,HIB250 10" 267mm 239mm 13.3mm 2,901.4 17,408.5
HIW,HIB300 12" 318mm 285mm 15.9mm 4,135.7 24,814.1
HIW,HIB350 14" 370mm 332mm 18.0mm 5,355.0 32,130.0
HIW,HIB400 16" 420mm 376mm 20.5mm 6m 6,928.2 41,569.2
HIW,HIB450 18" 470mm 422mm 22.9mm 8,670.6 52,023.6
HIW,HIB500 20" 520mm 467mm 25.3mm 10,607.4 63,644.4
HIW,HIB600 24" 630mm 566mm 30.7mm 15,454.8 92,728.8
Download Single mouth Table
Nan Ya HI Pipe (Impact-Resistant Type; High Impact Resistance Pipe; High Impact PVC Pipe), which totally complies with national CNS 14345 standard, is granted registration by Bureau of Standards, Metrology and Inspection (BSMI).
