FM 1613 Approved PE Pipe- FM Polyethylene Pipe

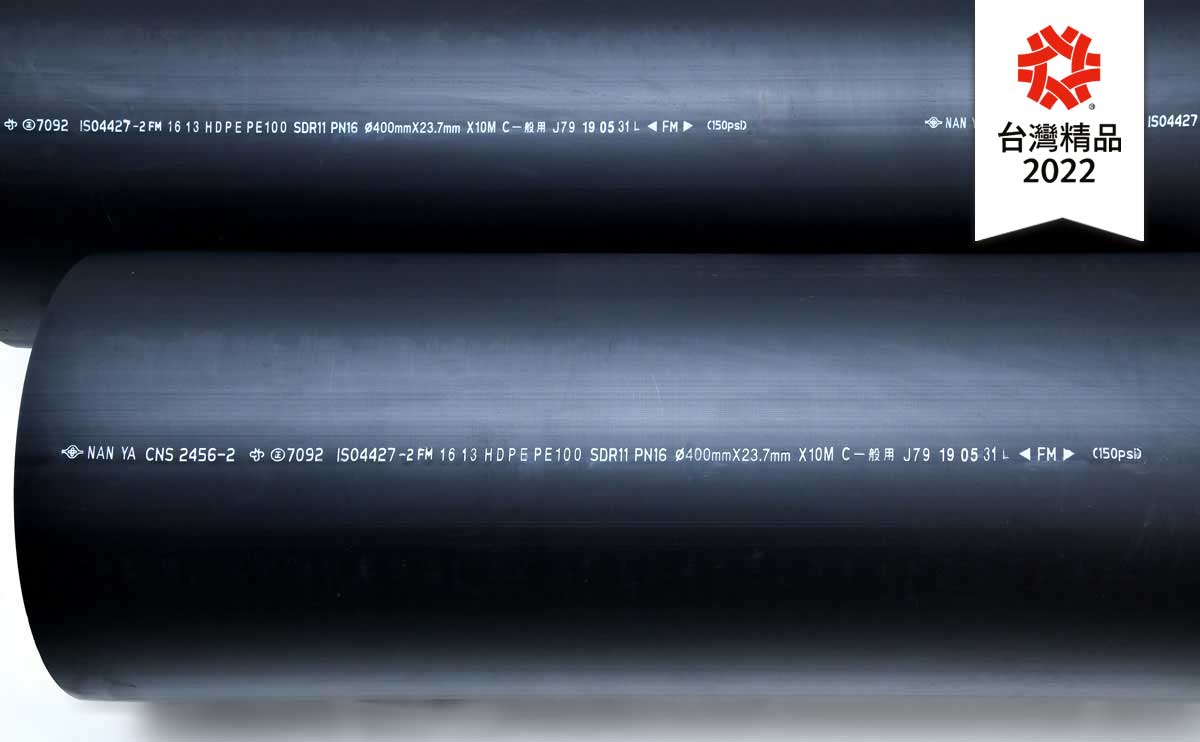

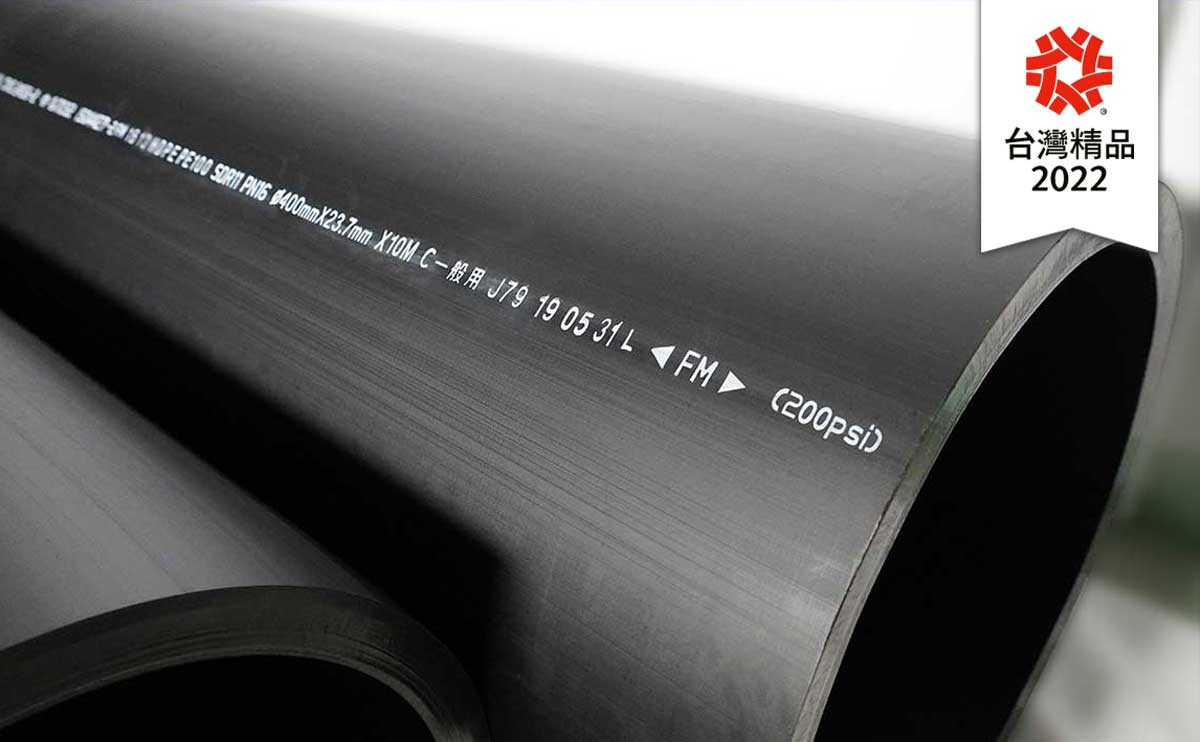

Nan Ya FM HDPE Pipe for Underground Fire Protection

With low temperature resistance, high impact resistance, earthquake resistance, good toughness, and excellent corrosion resistance, Nan Ya FM HDPE pipe is highly recommended for underground fire protection.

According to FM Approvals, the elongation of HDPE pipe must be higher than 400%; however, Nan Ya FM HDPE pipe, whose elongation is higher than 600%, has better flexibility than that of international standard.

FM approved HDPE pipes (Factory Mutual approved high-density polyethylene pipes) are used for underground fire protection and firefighting systems (municipal and industrial underground water service and fire protection), feature low temperature resistance, high impact resistance, and good toughness. In brief, FM approved HDPE pipes , manufactured by Nan Ya plastic pipe factory and certified by FM Approvals, is the best choice for potential customers from international factories and public agencies.

By complying with CNS Standards and FM Approvals (FM class 1613), Nan Ya FM approved HDPE pipes (Factory Mutual approved high-density polyethylene pipes), produced by one of the largest suppliers and the most productive manufacturers in the plastic pipes industry (PVC pipes market), are used for underground fire protection and firefighting systems. FM approved HDPE pipes (Factory Mutual approved high-density polyethylene pipes) are appropriate for municipal and industrial underground water service and fire protection owing to three merits: various specifications, excellent elongation, and superb flexibility.

FM approved HDPE pipes from one of the largest suppliers and the most productive manufacturers in the plastic pipes industry (PVC pipes market). Moreover, by passing FM Approvals (FM class 1613) and CNS Standards, Nan Ya FM approved HDPE pipesare absolutely suited for underground fire protection and firefighting systems.

Characteristics

With specific gravity between 0.95 and 0.97, materials of FM HDPE pipe are lighter than those of PVC pipe.
HDPE pipe features cold resistance (-40°C), earthquake resistance (level 8), elongation (600%), high impact resistance, and good toughness.
With acid, alkali, and chemical resistance, FM HDPE pipe is applicable to underground fire protection in seaside.
With excellent elongation and flexibility, small size of FM HDPE pipe can be packaged curly so that joints can be reduced.
FM HDPE pipe passes the hydrostatic test from FM Approvals 1613.

Application

1.Underground fire protection.

Introduction to FM Approvals

FM Approvals, a world-leading organization of certification and test, guarantee that industrial and commercial equipment and prevention from property damage comply with the highest standards of quality, technology, and performance.
Being audited, inspected, and approved by Factory Mutual Global, each Nan Ya FM HDPE pipe complying with a variety of standards from the fire system test guarantees stable quality and excellent performance.

Videos

Specification Table

SDR 9
SDR 11

Nominal Diameter	FM Pressure Level psi (kg/cm²)	Outside Diameter(mm)	Minimum Thickness(mm)	Length
110	230 (16.2)	110	12.3	5M
125		125	14.0
140		140	15.7
160		160	17.9
180		180	20.1
200	230 (16.2)	200	22.4
225		225	25.2
250		250	27.9
280		280	31.3
315		315	35.2
355	230 (16.2)	355	39.7
400		400	44.7
450		450	50.3
500		500	55.8
560		560	62.5
630	230 (16.2)	630	70.3

Download FM HDPE Pipe SDR 9 Table

Nominal Diameter	FM Pressure Level psi (kg/cm²)	Outside Diameter(mm)	Minimum Thickness(mm)	Length
110	175 (12.3)	110	10.0	5M
125		125	11.4
140		140	12.7
160		160	14.6
180		180	16.4
200	175 (12.3)	200	18.2
225		225	20.5
250		250	22.7
280		280	25.4
315		315	28.6
355	175 (12.3)	355	32.2
400		400	36.3
450		450	40.9
500		500	45.4
560		560	50.8
630	175 (12.3)	630	57.2
